Dash¶

Dash is a Python framework for building analytic web applications. As it's name suggests, it's especially good for building interactive dashboards. The strengths of this package lie in how it bridges the gaps between your app's analytic functionality, the web, and your user. Dash obviously integrates with Python and all of its functionality, but also provides a fairly intuitive interface to interact with the DOM (more on that below) and includes user interface components (i.e., widgets) that invite interactivity.

I recommend taking a day to work through the examples in the User Guide and exploring what's possible in the gallery. Once you've done that and built your first app, you can come back here for a quick refresher. Also worth noting that Dash 1.0 is relatively new, and a lot of the guidance you'll find in forums and on YouTube is outdated, so start with the official documentation and the very helpful Dash community.

The DOM

DOM is short for document-object-model. The DOM is how web browsers display information on web pages. The DOM is represented by HTML (Hyper-Text Markup Language). Having a decent grasp on HTML will help you as you customize your Dash app. Check out w3schools or codeacademy for a crash course. You don't need to know everything, but it's helpful to know how Dash is converting your Python code to HTML, and the options you have through Dash's HTML components.

Installation¶

Dash isn't distributed through conda (yet), so you'll need to install using pip. Might as well initialize a git repository and create a virtual environment while you're at it. Use virtualenv si

0nce this is a pip environment and that's what the Dash documentation suggests. Make sure your prompt is in the root folder of your project directory (or mkdir and cd into it).

virtualenv venv
source venv/bin/activate
pip install dash==1.8.0  # check the docs for the latest version
pip install plotly

Here are the files they recommend including in your .gitignore file.

venv
*.pyc
.DS_Store
.env

Patterns¶

A Dash app consists of a layout, which describes the organization of the app, and callbacks, which create interactive functionality.

Layout¶

The Dash layout consists of both Core Components and HTML Components. Core components represent your user interface widgets. HTML components expose the HTML tags used in the DOM as Python classes.

Here's a basic template layout to get you started.

# -*- coding: utf-8 -*-
import dash
import dash_core_components as dcc
import dash_html_components as html

external_stylesheets = ['https://codepen.io/chriddyp/pen/bWLwgP.css']

app = dash.Dash(__name__, external_stylesheets=external_stylesheets)

app.layout = html.Div(children=[
    # YOUR APP GOES HERE
])

if __name__ == '__main__':
    app.run_server(debug=True)

Within the app.layout variable, you'll define all of your core components and html components within a div HTML element as a list. app.layout essentially defines the body of the DOM. Everything you want on your webpage must be included here.

The external stylesheet provides styling through CSS to make your app look a bit better. You can also provide custom CSS and custom JavaScript.

Core Components¶

Dash's core components facilitate user interaction and include dropdowns, sliders, a variety of inputs, checkboxes, radio items, buttons, date pickers, file uploaders, tabs, dialogs, and graphs (i.e., charts). The tables component, recently released, allows for interacting with and even editing tables. As well, you can pass Markdown through the Markdown component. There are a few additional libraries of components available, check out the list under Open Source Component Library (I recommend checking out Dash DAQ library). Each component also has an array of properties that can be set (or updated through callbacks), refer to each component's documentation.

HTML Components¶

The HTML components provide all of the other functionality you'll need to create a web page by exposing a majority of the available html tags. You'll most often be using html.Div to create areas within the web page to show widgets, content, and even to store information without showing it.

Styling¶

The CSS provided by the external stylesheet offers some basic styling and a grid feature. Check out the codepen to see the documentation and example styles available to you. To use the CSS, you need to assign a class to the component. You can do this by including a variable className in the list of component properties. Convert any dots (.) in the CSS to spaces in your code. For example, a primary button (primary.button) is created with:

html.Button(
    children='Click me!',
    id='my_button',
    className='primary button'
    )

Grids¶

To create side-by-side elements, access the grid. First, create a div where you will include the side-by-side elements. Assign to each component the number of 'columns' you want the component to occupy out of a possible twelve. Assign to the div element the class name of 'row'. This example would create two side-by-side buttons, each occupying one half of the screen:

html.Div(
    className='row',
    children=[
        html.Button(
            className='six columns',
            id='submit-button',
            children='Submit'
            ),

        html.Button(
            className='six columns',
            id='undo-button',
            children='Undo'
        )
    ]

Bootstrap¶

Another stylesheet makes available Bootstrap (a popular user interface library for the web), called dash-bootstrap-components. This stylesheet changes the development patterns with new syntax for the layout, so decide if you want to use Bootstrap before getting too far in development.

Callbacks¶

Callbacks handle the interactivity of the app. Callbacks listen for events, like clicking on a button, and then handle the action required to make the button do it's job. You can update almost any property of any component through a callback. For example, you might want to update the figure property of a dcc.Graph component based on the value of a slider or other input. In other words, you will change the way the graph looks whenever the user interacts with the relevant widget.

To create a callback, import Input and Output from dash.dependencies, use the callback decorator, provide one or more outputs and one or more inputs, and then define a function that handles the interaction.

from dash.dependencies import Input, Output
# Put callbacks below the layout or in a separate file

@app.callback(
    Output('my-output', 'children'),
    [Input('my-input', 'value')]
)
def my_function(first_input):
    return first_input ^ 2

If you have more than one output, they should be passed as a list. The inputs need to be included in a list, regardless of how many there are. The inputs are passed to the function in the order they are listed. Two parameters are passed to the Output or Input, first the id of the component and second the property of interest. Thus, any component that supports interactivity must have an id property assigned (also, all components in your callbacks must also be represented in the layout, or you'll get an error).

Callbacks can also be chained to create a cascade of changes to create dynamic UIs where one input component updates the available options of another input component. Provide the Output of one callback as the Input of another callback.

Note that you won't provide the value for the Output components you will be updating within app.layout. This is because Dash automatically fires all of the callbacks upon page load, so anything you provide up front will simply be overwritten. For example, if you have a callback that updates the figure of a dcc.Graph component, don't include a figure= property for that graph in the app.layout section, you only need provide it an id= property.

Warning

Don't update variables that are outside of the callback's scope, as this can introduce unusual behavior.

State¶

Callbacks fire whenever there is a change to the input component(s). You might instead want to, say, wait for the user to finish updating a form before you fire the callbacks associated with those input fields. For this, you can use a State variable. Include State variables as you would Input variables, in a list below the Input variables.

from dash.dependencies import Input, Output, State

@app.callback(
    Output('my-output', 'children'),
    [Input('my-input', 'value')],
    [State('my-input-state', 'value')]
)
def my_function(first_input, state_input):
    return first_input ^ state_input

This example raises the value of the my-input component by the my-input-state component, which allows the user to specify the power to raise to without re-calculating all of the outputs. The result is used to update the children property of the my-output component (children properties are common for text outputs, so this would print the result to the screen).

PreventUpdate & NoUpdate¶

If you want to include logic that prevents updating a component based on the property of some input, you can use PreventUpdate.

from dash.exceptions import PreventUpdate

@app.callback(
    Output('my-output', 'children'),
    [Input('my-input', 'value')]
)
def my_function(first_input):
    if first_input is None:
        raise PreventUpdate
    else:
        return first_input ^ 2

Here, if the input is not filled in, the output component will not be updated.

Alternatively, you can use dash.no_update to tell Dash to skip updating a specific output based on an input value. For example, if you want to update one output, but not another, based on an input, return dash.no_update for that output.

Interactive Graphing¶

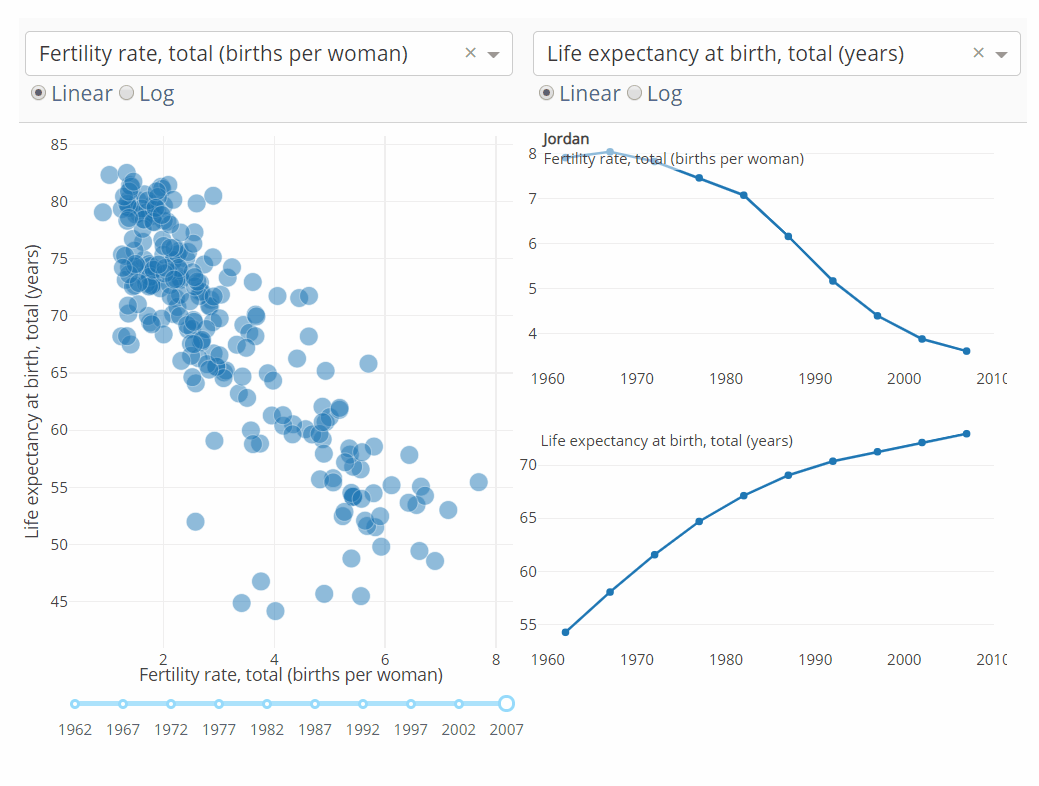

One really great feature of Dash is its ability to update multiple graphs based on the built-in interactivity of Plotly figures. Plotly figures support hovering, clicking, selecting, and zooming on charts and their data. Using Dash, you can update any component based on the user's interaction with the graph. This is probably best illustrated. Note the charts on the right are updated based on where the cursor hovers.

interactive-graphing

See the documentation for details.

Running the app¶

Run the app in the terminal with:

python <app.py>

where <app.py> is the path to your python script containing the application. By custom, this is called app.py. Visit localhost:8050 in your browser (or whichever port the terminal states).

Deployment¶

While Dash does provide a paid hosting platform, it's better to host on Heroku.

Warning

Don't deploy with Debug set to True (In app.py, set app.run_server(debug=False))

Heroku¶

Check out our Heroku tutorial for general guidance and the step-by-step tutorial in the official documentation (under Heroku example). There are a few configuration options and gotchas specific to Dash you'll need to know about that are covered in the tutorial.

Flask¶

Dash is written on top of flask, and so integrates fairly easily with Flask applications. Deploying your Flask application is exactly the same as deploying your Dash application.

Embedding in existing websites¶

Dash apps (and any other apps hosted through Heroku) can be inserted into a webpage using the iframe tag.

<iframe src="<path-to-my-app.com>", height=800, width=700></iframe>

Note that with the free tier, the page may timeout before the app is spun up and loaded. You'll need to reload the site, which isn't the best user experience, so consider upgrading any app that you want to embed in this way.

Tips & Tricks¶

Storing data & performance¶

If your app includes expensive analytics, you may want to separate that process from the interactivity of your app to avoid expensive computations with every change of inputs. One option is to store the data in a hidden div. This will store the data in the user's browser for the duration of their session. Data has to be converted to a string like JSON for storage. You can either store the fully computed data or you can perform some computation, save the intermediate results, and then with a chained callback access that information to complete the interaction. The pre-processed data will be available to subsequent callbacks where you stored it. Finally, you can cache the data using flask. This will also allow for persisting the data between sessions. Once you're ready to worry about optimizing performance, see the docs.

Multi-page Apps¶

If you need basic functionality for multiple pages, check out the Tabs core component. If you really need a multi-page app, you can either embed multiple Dash apps in a Django or Flask app, or check out this guidance. I'd also recommend this helpful Towards Data Science article.

Extending¶

You can write your own Dash components in React JS, a popular JavaScript library for building user interfaces. You'll need to fork the sample component library and, of course, be comfortable working with React JS.

Custom CSS¶

To add your own CSS, save the CSS files in a folder named assets in the project's root directory. Dash will automatically serve any CSS it finds here. Note that the CSS files are added in alphanumeric order, so if the order matters, prepend numeric values to the filenames to get the loading order you want. You can also copy the provided CSS into this folder and edit it.

Custom JavaScript¶

To add custom JavaScript, simply include a JavaScript file in the assets folder in the project's root directory. Dash will automatically include it. However, they recommend building new Dash components for any significant functionality you want to add.
